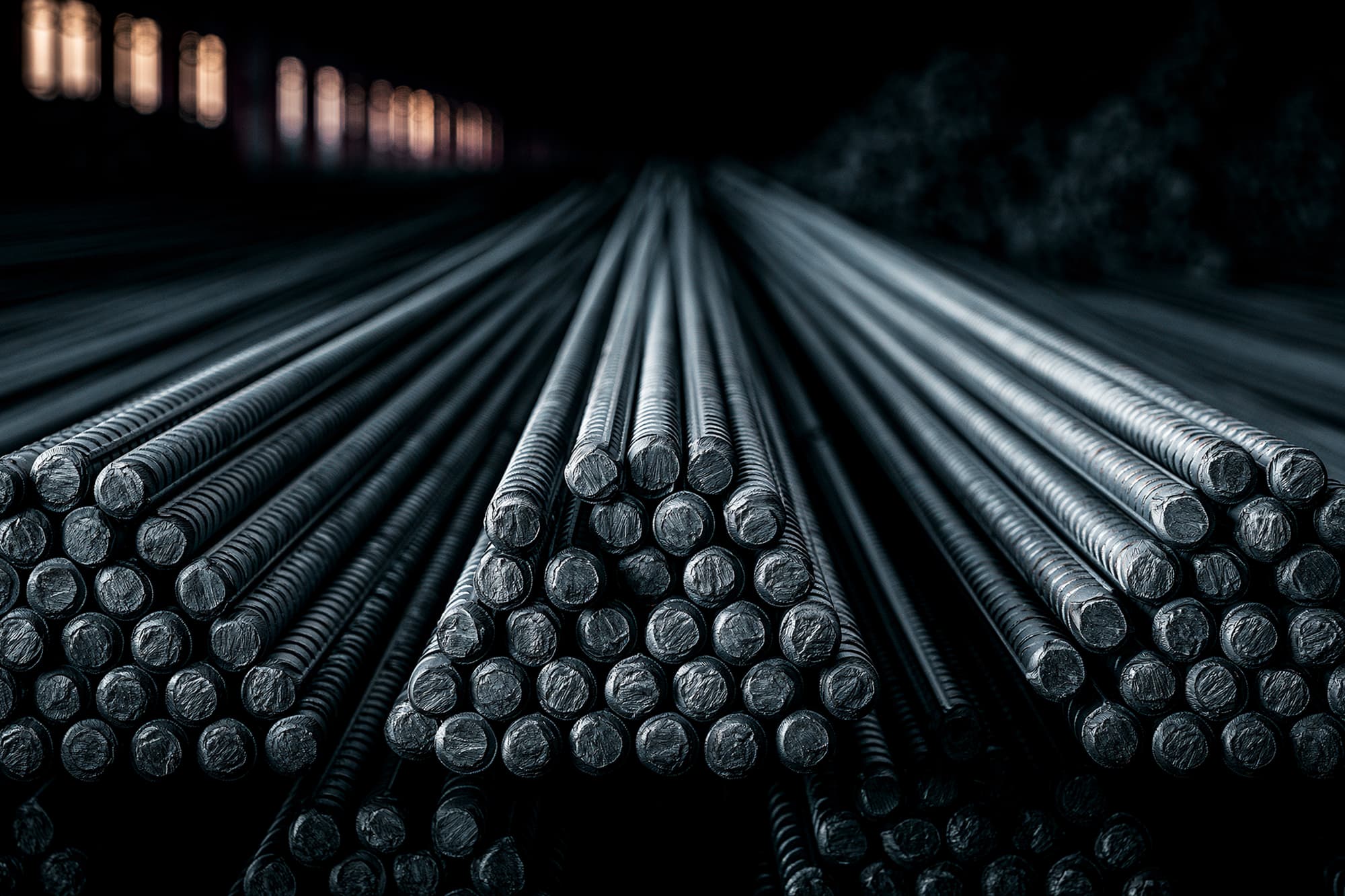

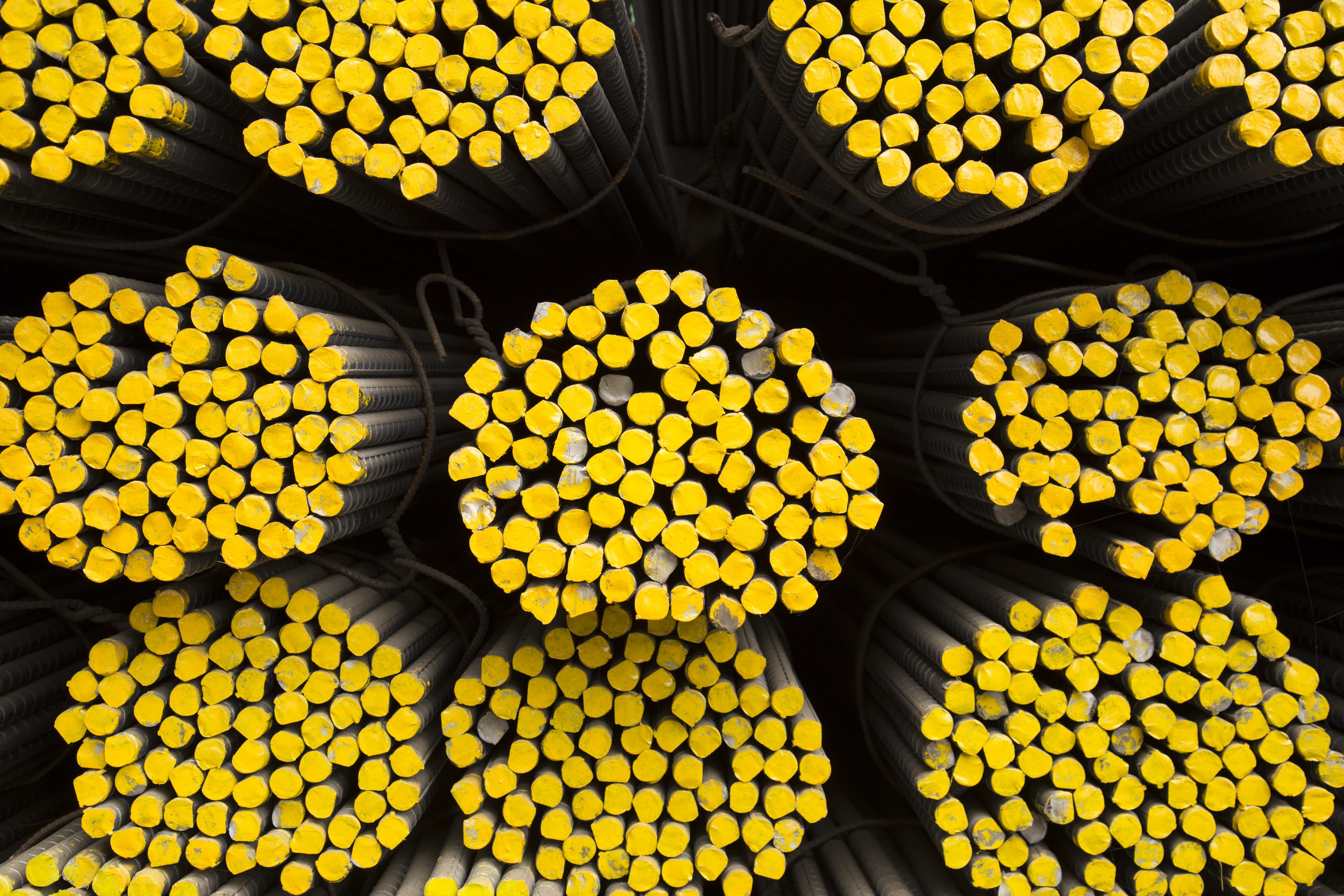

Our highest-tensile bar, built for the toughest structural demands.
- Yield strength
- 80,000 PSI (≈550 MPa)
- Available sizes
- #3 – #18
- Standard
- ASTM A706 Grade 80
Full technical data
- Yield Strength
- 80,000 PSI (≈550 MPa)
- Ultimate Tensile Strength (min)
- 100,000 PSI
- Elongation (#3–#11)
- 12%
- Elongation (#14–#18)
- 10%
- Intended Use
- Earthquake-Resistant Structures
- Standard
- ASTM A706 Grade 80
Where it performs best
Our highest grade, engineered for demanding structural applications requiring the highest possible tensile strength.
- High-rise & seismic structures
- Heavy load-bearing columns
- Long-span infrastructure
- Earthquake-resistant design
Save steel with AFCO A706 Grade 80.
Higher strength per kilogram means the required capacity is met with less reinforcement, steel you don’t have to buy, place, or lift.
33% higher yield strength
+33%AFCO A706 Grade 80 provides roughly 33% higher yield strength, so designers can meet the required strength with a smaller cross-sectional area of reinforcement.
Less steel, same capacity
For equal yield capacity
In actual structures, designers cannot always use the full 25% theoretical saving. Minimum reinforcement, bar spacing, crack control, serviceability, and seismic detailing can limit the reduction, but even so, Grade 80 delivers meaningful cuts in overall steel tonnage.
More strength. Less steel. Smarter construction.
*Theoretical maximum is based on equal yield capacity. Actual savings vary by structural design and applicable codes.
Why AFCO chooses ASTM A706 Grade 80 for seismic Pakistan.
Pakistan lies in an active seismic zone, where reinforcing steel must provide not only strength, but ductility and reliable performance under earthquake-induced cyclic loading.
Strength alone is not enough
ASTM A706 Grade 80 and ASTM A615 Grade 80 both provide a nominal yield strength of 80 ksi (≈550 MPa). Seismic safety, however, depends on predictable post-yield behaviour and deformation capacity, not yield strength alone.
Ductility & cyclic performance
A706 Grade 80 includes limits on yield variability, yield-to-ultimate strength ratio, and minimum elongation. These controls ensure stable yielding and adequate strain capacity during repeated seismic loading. A615 Grade 80 imposes no equivalent ductility controls, and may exhibit limited deformation capacity in seismic conditions.
Capacity-design reliability
Seismic design relies on controlled yielding of reinforcement to form plastic hinges and prevent brittle failure. A706 Grade 80 provides more predictable yielding and reduced overstrength, aligning it with seismic capacity-design principles.
Weldability & code acceptance
A706 specifies controlled chemical composition, improving weldability for welded splices and prefabricated reinforcement cages. In seismic regions A706 Grade 80 is explicitly recognised and commonly required where reinforcement is expected to undergo inelastic deformation, while A615 Grade 80 is often restricted in ductile seismic systems.
AFCO Steel Pvt. Ltd. intentionally manufactures ASTM A706 Grade 80 to deliver controlled ductility, reliable cyclic performance, predictable seismic behaviour, and safer weldability for reinforced concrete structures in seismic regions such as Pakistan.
